GATES & AIR SLIDES
We specialize in manufacturing high
quality cement plants Gate to our esteem clients. These are widely
used in different sectors and acknowledged for the smooth functionality
and long service life features.: - |
||
|  |
 |
Manual Slide Gates |
Pneumatic Slide Gate |
Flow Control Gate |
|
 |
 |
Sector Gate |

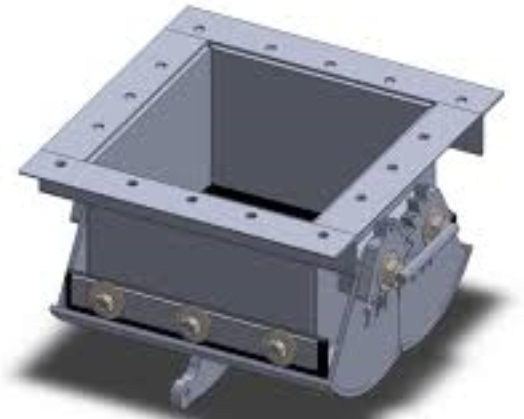

Clam Shell Gate |
Needle Gates |
|
||
Diverting Gates |
AIR SLIDESThe Air Slide is designed to convey bulk powders from silos or storage compartments into a processing system. They provide a convenient and easily controllable method of conveying – they can incorporate bends and multiple discharge points if necessary. The Air Slide consists of a rectangular chamber
separated by a permeable cloth. The chamber is inclined at a very
slight angle (as low as 1.5°). Compressed air is injected into the
lower chamber which then permeates through the media and fluidizes
the product. The product then behaves like a fluid and flows down
the length of the chamber. The excess air is vented to a dust collector. |
 |
Materials which are usually handled by air slide are cement, gypsum, bauxite, alumina, kiln dusts,
flours, starches, bentonite, certain fly ashes, plastic powders etc.
It consists of fixed synthetic fabric, inlet socket, air supply socket,
inspection cover top and lower box,
gasket, Discharge Spout, High Pressure Fans and connecting bolts.
